Install GAMETRAQ 4 at your court

Here is the guide to help you setup the GAMETRAQ4 AI camera on the court. No prior network skills is needed.

Overview

  1. Get connected with us over Whatsapp
    Connect to Tech team using WhatsApp group https://wa.me/+46763428870 and add your handyman/club manger from your side to the group. We will assign you with a dedicated tech engineer to support you to get going

  2. Follow the steps bellow

  3. Pick a date for onboarding
    We onboard your team on a video call demonstration so you can see how you operate the features. and you can ask questions you have.

  4. Announce the system to your players
    Put the QR poster on the Court side and send out an email to your players that the system is online

QR code with WhatsApp logo in the center.

Step 1: BEFORE ARRIVAL OF THE GAMETRAQ UNIT

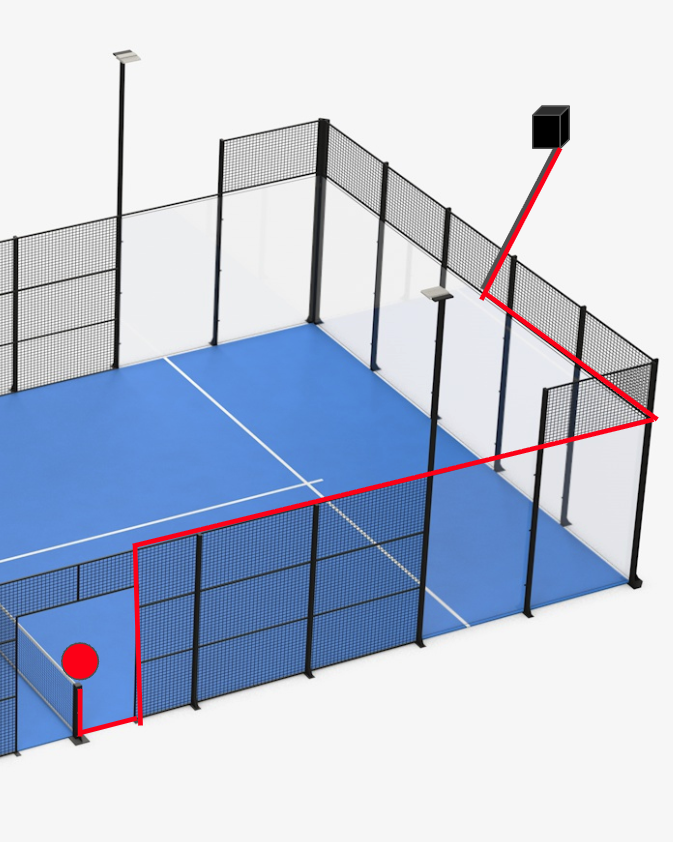

➡️ Cable Layout Preparation

  1. Pull a CAT6/network cable from the server room (switch location) to the short side of the court where you want to have the AI camera

  2. Leave 2–3 extra meters of cable for flexibility.

Two men playing a game of pickleball on a blue court inside an indoor sports facility, with one holding a paddle and the other in motion to hit the ball.

Step 2: UPON ARRIVAL OF THE GAMETRAQ UNIT

➡️ Initial Setup

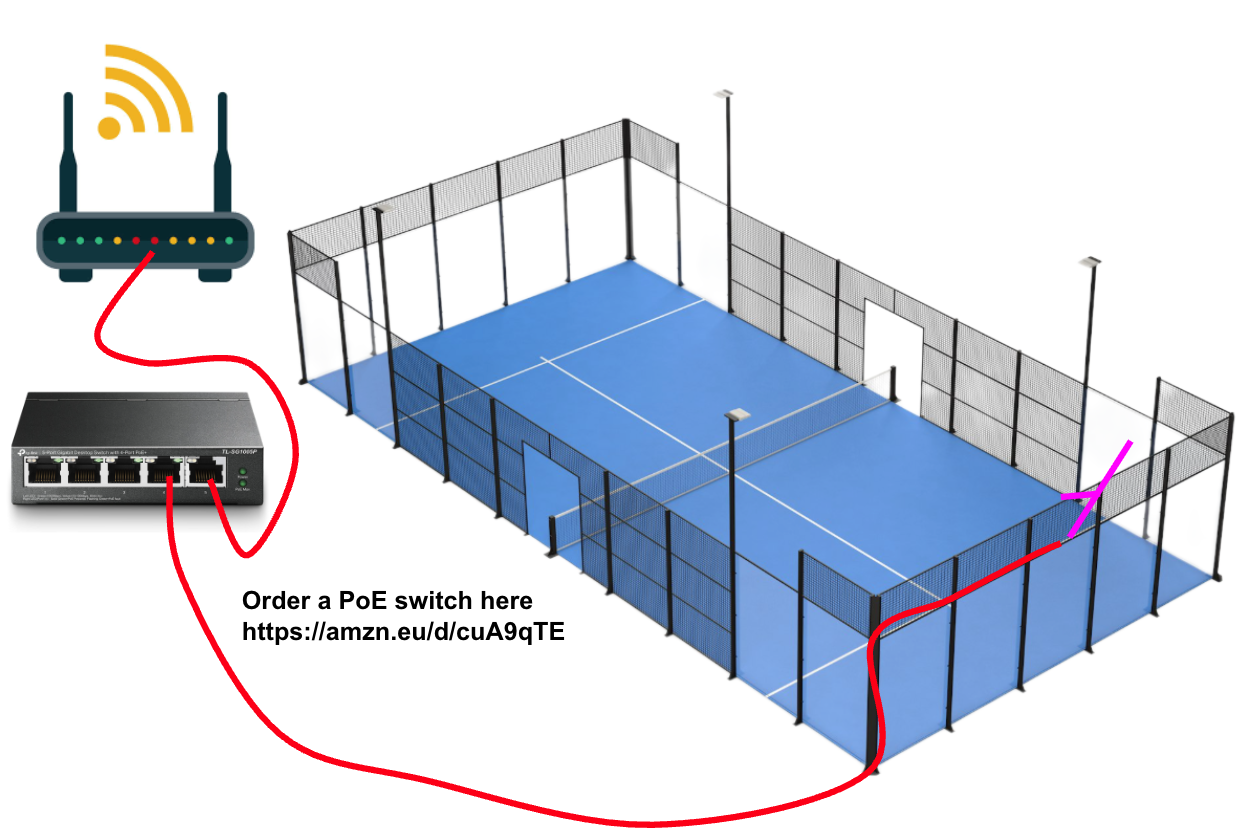

Check that your router can do PoE+ 20W this to amplify the camera with power. If you dont have it buy an extended unit at Amazon TP-Link click the link to purchase it https://amzn.eu/d/0SVOt2G

  1. Cabling: Pull a CAT6/network cable from the server room (internet router ) to the short side of the padel court where you want to have the AI camera mounted.

  2. Check connectivity: Connect the CAT6 cable with internet router and the other end with the GAMETRAQ 4 Unit

  3. Camera ID: this 3 digit number is stated on the side of the camera. Add that number here bellow and press the CHECK CAMERA CONNECTION

  4. Status: Do you see the camera ID and the status ONLINE ? if yes proceed to next step. if it says OFFLINE connect with the WhatsApp group for more support and trouble shooting.

If the camera status shows ONLINE to the next step.

Link to the https://install.gamecam.se/check.php

If the camera status shows ONLINE to next step.

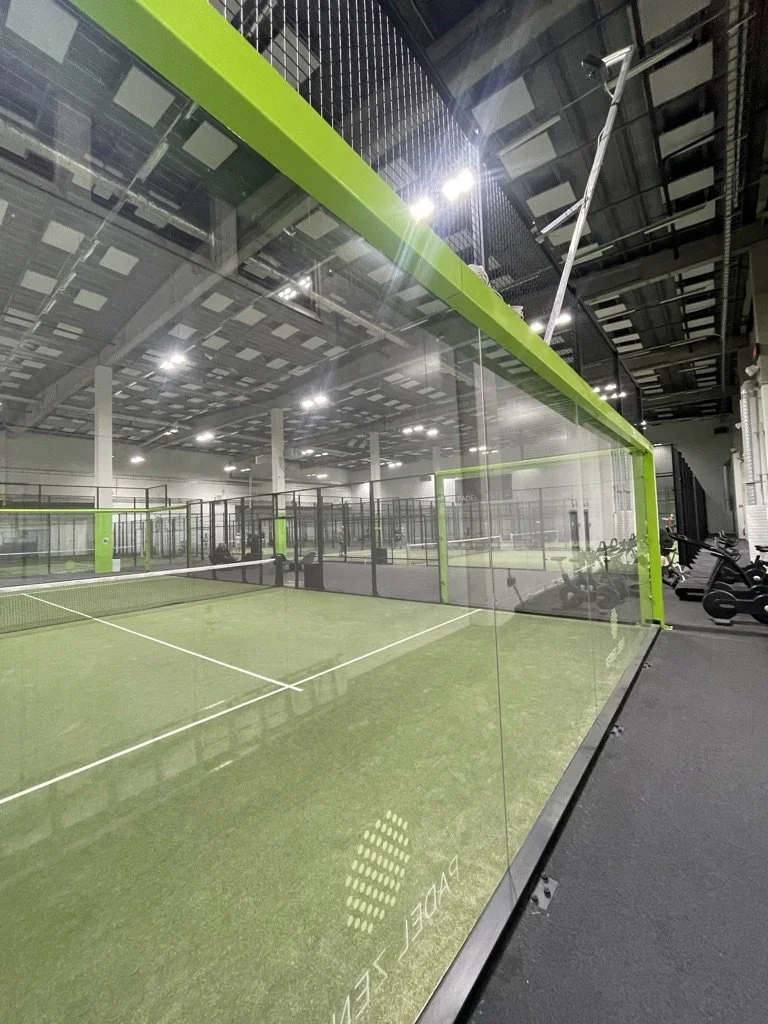

Step 3: Mount the camera on court

➡️ Setup the camera mount and camera

  1. Assemble the Bird-View unit as the drawing displayed at the end of this guide.

  2. Attach the camera to the camera plate on the Bird-view mount.

  3. Mount the Bird-View unit onto the court with plastic strips (ensure secure attachment).

  4. Connect the CAT6 cable to the camera.

  5. Plug in the USB microphone to the camera.

  6. Clip the microphone to the grid construction.

Metal apparatus with labeled parts A, B, C, and D on a wooden floor. Part B appears to be a black box at the top, part A is a long straight metal bar, part C is a smaller metal piece, and part D is a shorter metal component, all connected to form a structure.
An indoor sports facility with a falling metal lighting or support pole near gray fabric curtains, enclosed by a black metal fence, with a green artificial turf floor.

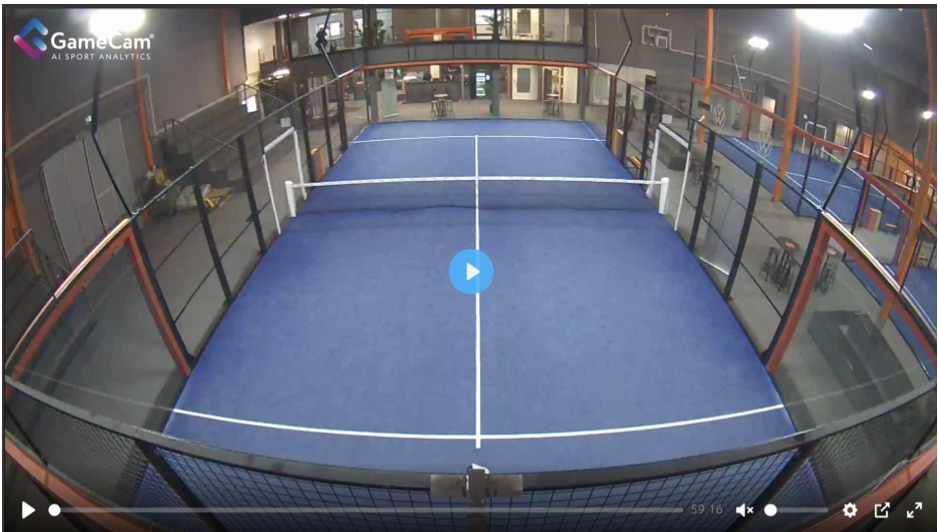

Step 4: Set the camera angle

➡️ Adjustments

  • Set Camera Angle Go to the live feed page here https://install.gamecam.se/live.php

    • Place the camera as the image displays so you have the right framing of the video on the court.

    • To see your framing Wait 20 seconds to account for video delay.

    • Continue adjusting until the framing is as the image

Indoor padel court with blue surface and glass walls, illuminated lighting, and sitting areas outside the court.

LIVE STREAM PLAYER

Step 5: Set camera focus

➡️ Adjustments

  • Set Camera focus Go to the live feed page here https://install.gamecam.se/live.php

    • Gently turn the camera optic 1/4 turn clockwise or counter-clockwise.

    • Wait 20 seconds to account for video delay.

    • Continue adjusting until the far side of the court appears sharp and clear in the feed.

A metal device with a speaker grille at the top and a black button below, featuring a white smiley face drawn to appear as a smiling mouth around the button, on a blurred outdoor background.

LIVE STREAM PLAYER

Step 6: Schedule a onboarding call

➡️ Pick a time and schedule the onboarding call to get updated on:

  • Get your QR poster - how to set it up

  • Get access to dashboard

  • How players start the AI camera

  • News and updates from the camera system.

  • Schedule a Youtube stream

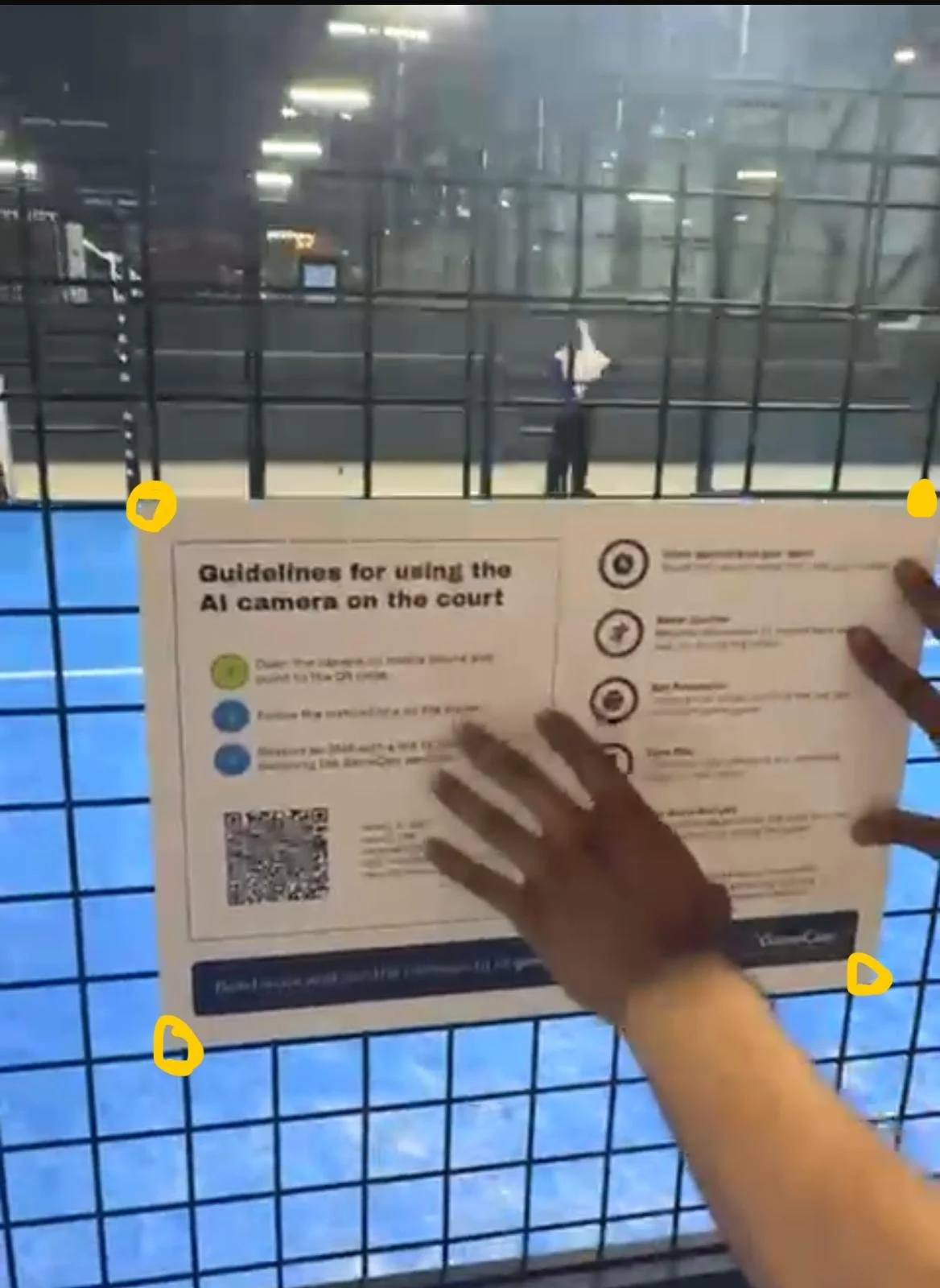

Step 7: Set-up the QR code on the court

➡️ Actions to do

  • Set the QR poster on the court with plastic stripes

  • Inform your coaches

Sign with guidelines for using AI camera on a sports court, displayed on a wire fence at an indoor court with a person in the background.

Step 7: Launch AI cameras to your players

➡️ Instagram post

  • Make a real or a post use the video and text and add @gamecam.se so we can re-post it in our channels

➡️ WhatsApp post

  • Copy the text and video and publish it at your WhatsApp groups
